Diamond Locating Pin Design . • the top portion of theses. Spin the handle up or down, then tighten the locknut to change the length by up to ½”.
Locating Pins and How they are used MISUMI USA from us.misumi-ec.com
This can also be done with a diamond shaped pin if two circular holes are preferred. The added shoulder also resists forces from above, even when the head diameter is smaller than the shank diameter. Easier to locate on diamond pin than two round pins.
Locating Pins and How they are used MISUMI USA
Adopted 2 april 1969 i,, Enter the diamond locating pin to the rescue. Standard production time is eight days with an minimum order and no tooling/setup charge. Outer dimensions similar to din 63210.
Source: us.misumi-ec.com

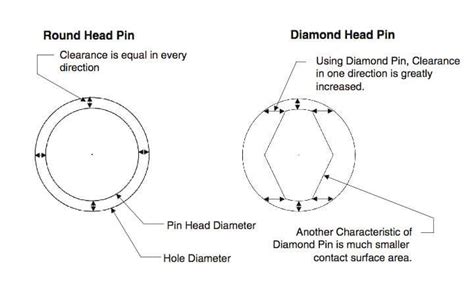

Diamond pin locator work piece with the drilled holes use two round pins if dimension variation between centre to centre distance of the holes, one round and diamond pin locators are used binding is eliminated prevents movement around the. The diamond shape is a critical feature that helps with machining inaccuracies and smoother locating operation. The diamond shape is a.
Source: www.pinterest.com
• the top portion of theses. Supporting pins or flat locators 4. Title of legally binding document: The diamond shape is a critical feature that helps with machining inaccuracies and smoother locating operation. You might say, “just add another pin and your rotation problem is solved!” true, but if the locating pins are even slightly misaligned, they can bind and.
Source: www.purejewels.com
Enter the diamond locating pin to the rescue. For additional safety these parts can be secured to the jig from above, see dimension d 6 for cap screw size, or from below, see dimension d 3 for thread size. A diamond pin is meant to handle the variation (tolerance) of the distance between the two locating holes. Title of legally.
Source: www.pinterest.com
There are dozens of styles of locating pins that can be utilized in a design. • cylindrical pin used to locate a work piece from a hole produced by previous operation. This can also be done with a diamond shaped pin if two circular holes are preferred. D/2 = (b/2)sinα d = b sinα maximum deviation of the contact pin:.
Source: www.pinterest.com
Enter the diamond locating pin to the rescue. We will explain the structure and show an example of how each style can be applied. Dimensions for diamond locating pins number of amendments: Cone locator pins can compensate for a moderate amount of misalignment. • out of the two holes, the accurate one should be used for principal cylindrical location with.
Source: www.carrlane.com
E= the movement of diamond pin in the hole b b= pin diameter in mm d= contact pin diameter in mm w= width across flats h= length of pin to find the width of contact surface between pin and hole: Spin the handle up or down, then tighten the locknut to change the length by up to ½”. The added.
Source: www.pinterest.com
With a very low cost or complexity to design, which makes them a popular alignment method. Diamond locating pin i8 x 12 is : * size d1 = 6. • the locating surface of a diamond pin is usually less than 8% of a full cylindrical pin. We will explain the structure and show an example of how each style.
Source: us.misumi-ec.com
In this weeks blog video, a round locating pin is replaced by a diamond pin in our sample fixture. There are dozens of styles of locating pins that can be utilized in a design. Diamond locating pin i8 x 12 is : Spin the handle up or down, then tighten the locknut to change the length by up to ½”..
Source: www.pinterest.com
Two round locating holes with diameters closely sized to the locating holes diameters may not always accept the allowable distance variation between them. • the diamond shaped pin is used to constrain pivoting of the workpiece around the principal locator. These locating pins are the most common form of relieved floating pin in workholders. Enter the diamond locating pin to.
